Fascia Mount
GUTTER GUARD
FASCIA MOUNT

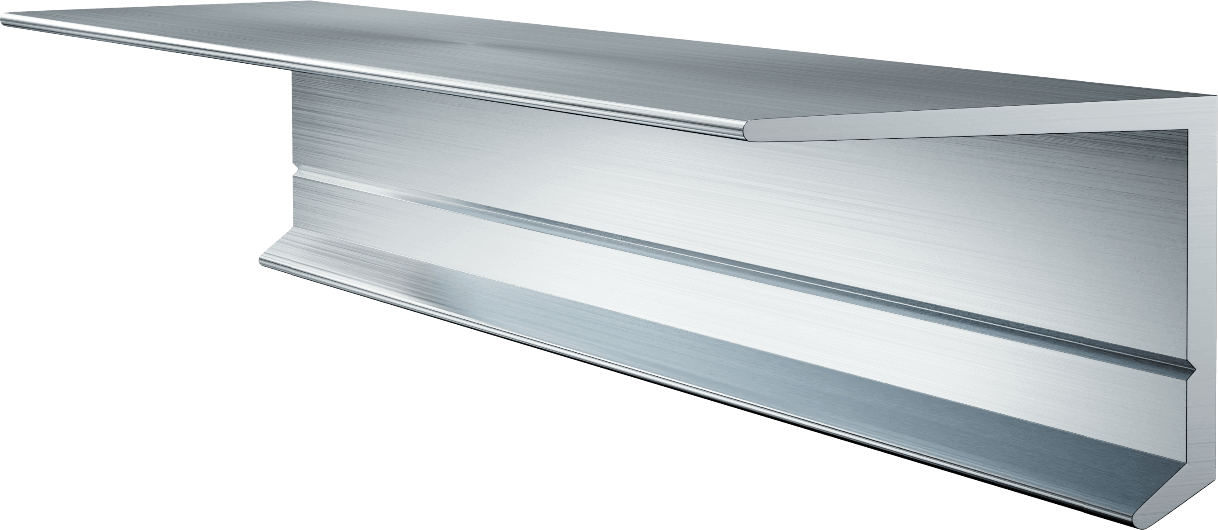

The Gutter Guard Fascia Mount provides an installation option for applications below the roof line, for steep roof scenarios, for added support to secure guard to the fascia, or where hanger straps are present.
HOW DO I INSTALL IT?
Please click the images below to view more information:
To install the fascia mount at a consistent height, we recommend cutting a 2x4 piece of wood the same depth as the gutter to use as a guide.
Using the indent scribe as a screw guide, attach the fascia mount (with the drip edge down) to the fascia.
Use 2 screws for each 6 inch piece, or 4 screws if installing a full 4 foot piece of gutter guard fascia mount.
1. Use 1 piece of 6 inch fascia mount as a center support for a 4 foot piece of gutter guard, and then 1 piece of 6 inch fascia mount at both ends.
2. The 6 inch end pieces should be installed where they support the last 3 inches of gutter guard and then allow 3 inches of support for the next gutter guard installed.
1. Rest the rear of the gutter guard on the fascia mount. The top side of the fascia mount is tapered at a slight angle and will support the gutter guard.
2. If necessary, the gutter guard can be fastened to the fascia mount with screws. Follow the gutter guard installation steps
HOW MUCH FASCIA MOUNT DO I NEED?
1 foot of Fascia Mount is needed to support each 4-foot piece of gutter guard (see cut schedule in install guide).
Use 2 screws per 6-inch piece of Fascia Mount (screws sold separately).
FASCIA MOUNT QUICK JOB CALCULATOR
Enter the amount of gutter guard planned to install and click calculate bellow:
ft
AMOUNT OF GUTTER PLANNED TO INSTALL.
YOU WILL NEED
0 FEET
OF FASCIA MOUNT TO COMPLETE THE JOB
CONTACT USNote: Use 2 screws per 6-inch of Fascia Mount (Screws sold separately)
Need additional assistance?
WHAT IS THE WARRANTY COVERAGE?
The Gutterglove Pro Gutter Guard Fascia Mount is covered by a 50-year warranty.
